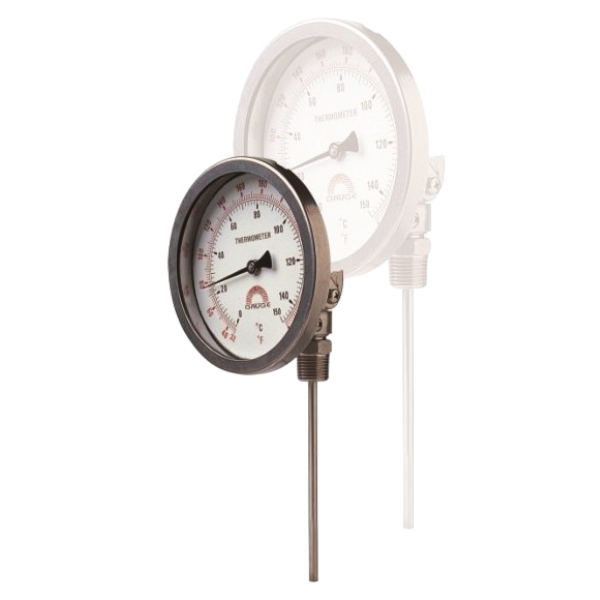

Bi-Metal Dial Thermometer｜BA Type Adjustable Angle - Specifications & Structure
Specifications
- Case Material: 304SS, 316SS
- Case Dial: 3", 4", 5", 6"
- Stem Material: 316SS
- Temperature Range: -50℃ ~ +600℃
- Dial Color: Black figures on non-glaring white dial
- Hermetic Sealed Case: Yes
- Enclosure Class: IP65
- Window: Glass
- Connection: 1/2"PT (NPT, BSP)
- Stem Length: By order
- Stem Diameter: 6mm, 6.35mm, 8mm
- Accuracy: ±1% F.S.
- Type: BA TYPE
- Applications: Transformers, petrochemicals, dryers, food industry, HVAC equipment, boilers, and other industrial uses
Model Dimensions
| Model No. | A | B | C | D | E | F | T (Connection) |
|---|---|---|---|---|---|---|---|
| BA3 | 75 | 91 | 18 | 60 | 75 | 93 | 1/4"PT |
| BA4 | 100 | 119 | 18 | 60 | 75 | 93 | 3/8"PT |
| BA5 | 125 | 141 | 18 | 60 | 75 | 93 | 1/2"PT |
| BA6 | 150 | 166 | 18 | 60 | 75 | 93 | 3/4"PT |

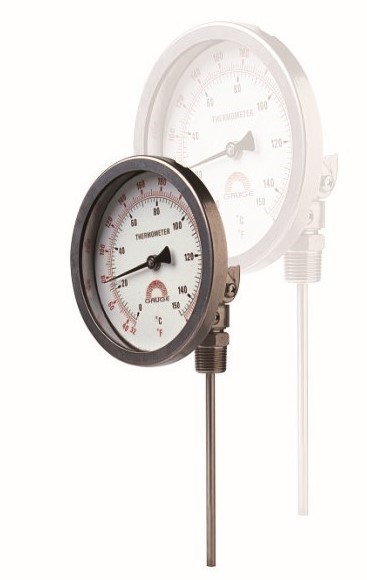

Bi-Metal Dial Thermometer BA TYPE
