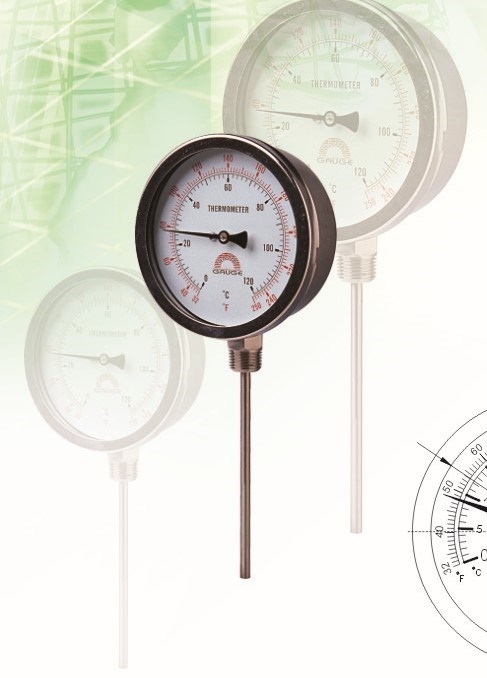

Bi-Metal Dial Thermometer｜BS Type Vertical Specifications & Structure
Specifications
- Case Material: 304, 316 Stainless Steel
- Dial Size: 3", 4", 6"
- Stem Material: 304, 316 Stainless Steel
- Temperature Range: -50℃ ~ +600℃
- Window: Glass
- Connection: 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length: By order
- Stem Diameter: 6mm, 6.35mm, 8mm
- Accuracy: ±1% F.S.
- Type: BS TYPE
- Applications: Transformers, petrochemicals, dryers, food industry, air conditioning equipment, boilers, and other industrial uses
Model Dimension Table
| Model No. | A | B | C | T (Connection) | L (Insert Length) |
|---|---|---|---|---|---|
| BS3 | 70 | 84 | 45 | 1/2"PT | By order |
| BS4 | 102 | 118 | 48 | 1/2"PT | By order |

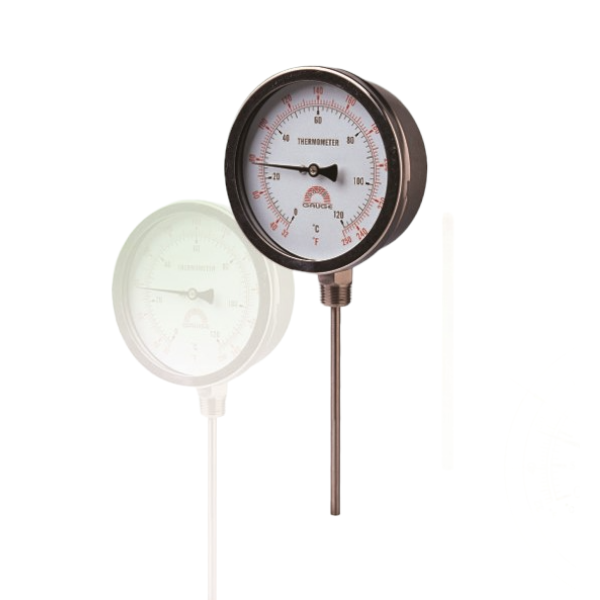

Bi-Metal Thermometer BS TYPE
