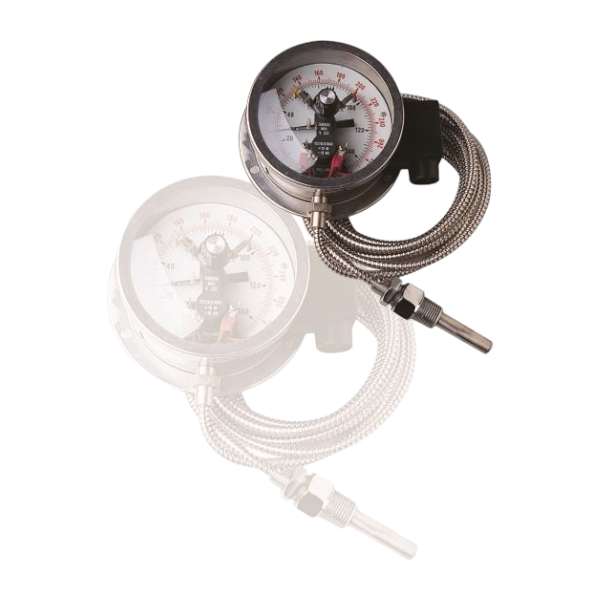

Remote Wall-Mounted Thermometers (With Contact Points)｜MW-1A / MW-2A Specifications & Structure
Specifications
- Case Material: 304, 316 Stainless Steel
- Case Dial: 3", 4", 6"
- Stem Material: 304, 316 Stainless Steel
- Temperature Range: -50℃ ~ +600℃
- Window: Glass
- Connection: 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length: By order
- Accuracy: ±1% F.S.
- Type: MW-1A, MW-2A TYPE
- Applications: Transformers, petrochemicals, dryers, food industry, air conditioning equipment, boilers, and other industrial uses

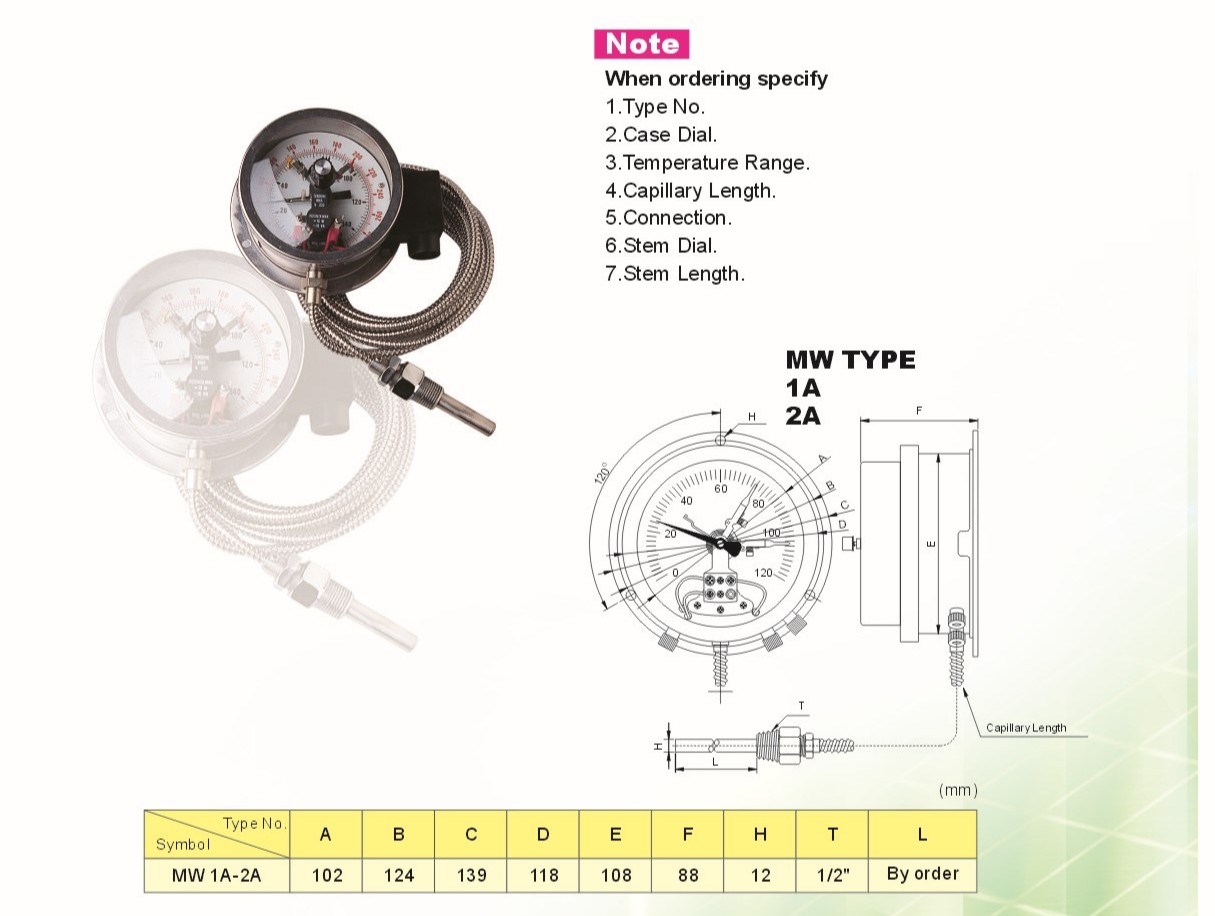

Model Dimensions
| Model No. | A | B | C | D | E | F | H | T (Connection) | L (Insertion Length) |
|---|---|---|---|---|---|---|---|---|---|
| MW-1A / MW-2A | 102 | 124 | 139 | 118 | 108 | 88 | 12 | 1/2" | By order |
Remote Wall-Mounted Thermometer MW-1A / MW-2A
