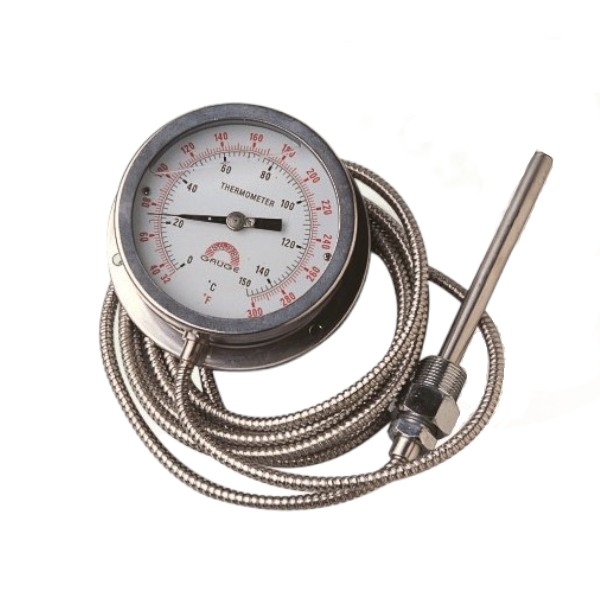

Remote Wall-Mounted Thermometer (with Contact)｜MW3 / MW4 Specifications & Structure
Technical Specifications
- Case Material： 304, 316s.s
- Case Dial： 3", 4", 6"
- Stem Material： 304, 316s.s
- Temperature Range： -50℃ ~ +600℃
- Window： Glass
- Connection： 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length： By order
- Accuracy： ±1% F.S.
- Model (Type)： MW3, MW4, MW6 TYPE
- Applications： Transformers, petrochemicals, dryers, food processing, air conditioning equipment, boilers, and other industrial uses

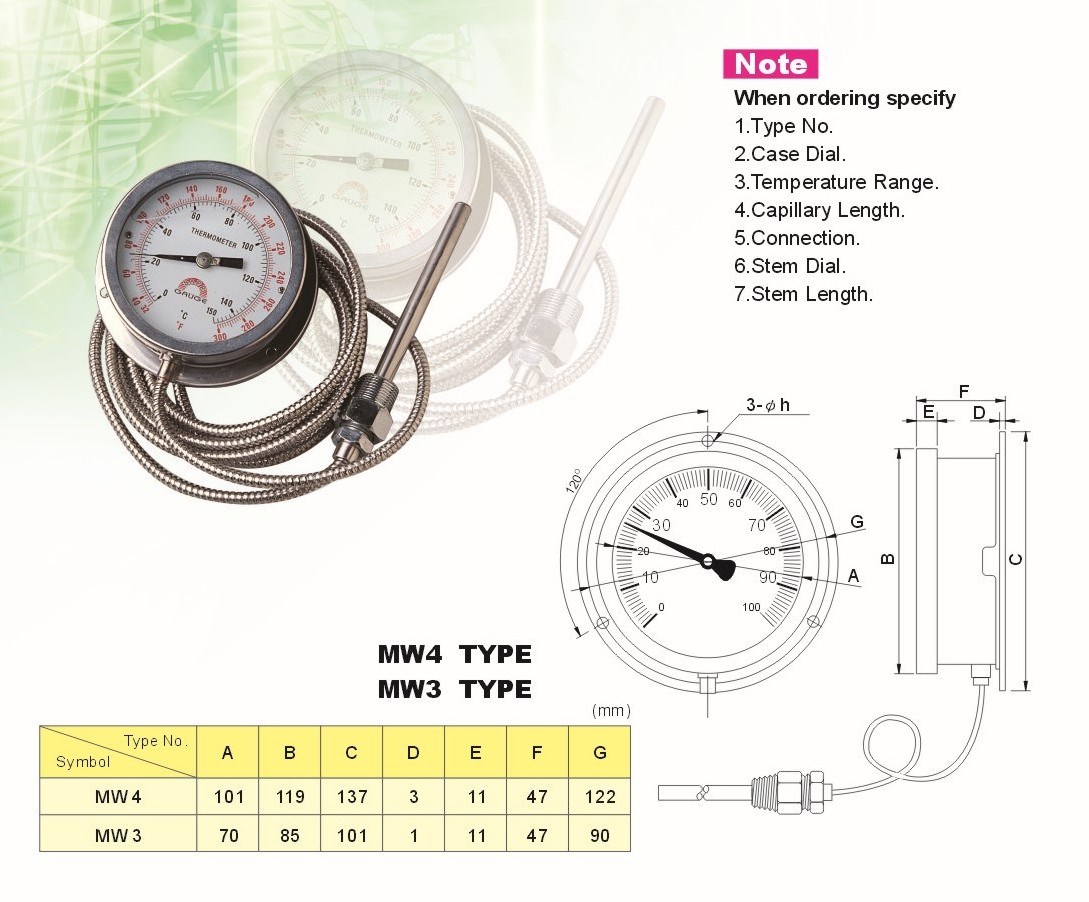

Model Dimension Table
| Model No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| MW4 | 101 | 119 | 137 | 3 | 11 | 47 | 122 |
| MW3 | 70 | 85 | 101 | 1 | 11 | 47 | 90 |
Remote Wall-Mounted Thermometer MW3 / MW4
