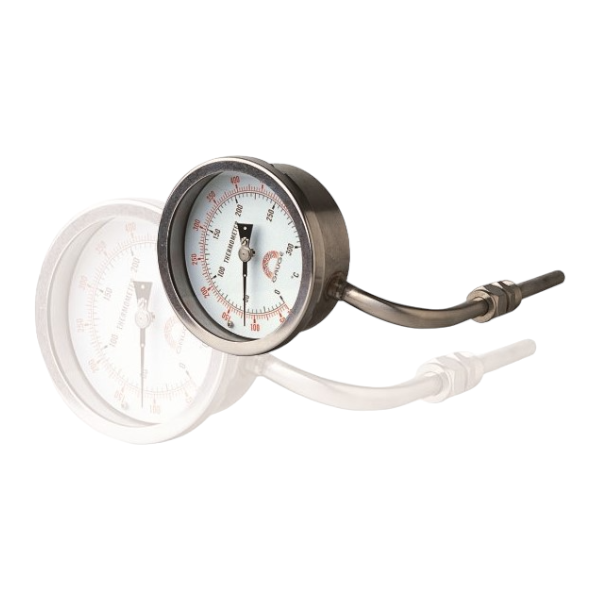

HL Type Liquid Expansion Thermometer｜Stainless Steel Industrial Thermometer
Technical Specifications
- Case Material: Stainless Steel #304, #316
- Case Dial: 3", 4", 6"
- Stem Material: Stainless Steel #304, #316
- Temperature Range: -50℃ ~ +600℃
- Window: Glass
- Connection: 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length: By order
- Accuracy: ±1% F.S.
- Type: HL TYPE
- Options: Special ranges, custom connections, lens, and stem length
Model Dimensions
| Model No. | A | B | C | Connection (T) | Stem Length (L) |
|---|---|---|---|---|---|
| HS3 | 84 | 75 | 47 | 1/2" | By order |
| HS4 | 118 | 108 | 45 | 3/4" | By order |
| HS6 | 160 | 148 | 45 | — | By order |
HL Type Liquid Expansion Thermometer
