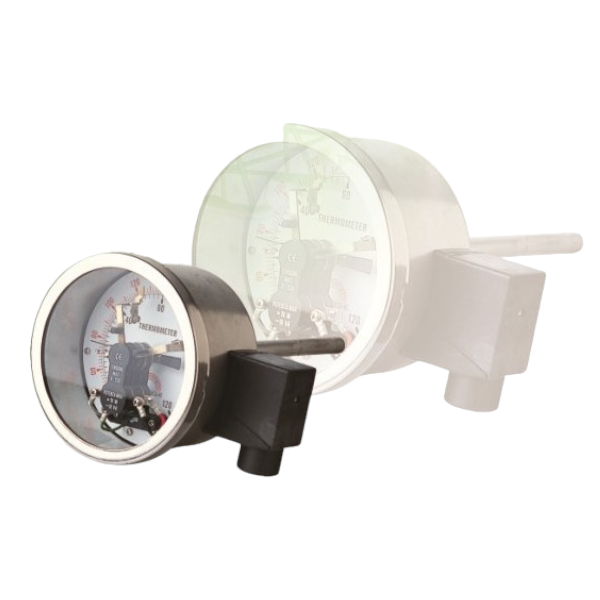

HT-1A Type Liquid Expansion Thermometer｜Stainless Steel Industrial Thermometer
Technical Specifications
- Case Material: Stainless Steel #304, #316
- Case Dial: 3", 4"
- Stem Material: Stainless Steel #304, #316, Copper
- Temperature Range: -50℃ ~ +600℃
- Window: Glass
- Connection: 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length: By order
- Accuracy: ±1% F.S.
- Type: HT-1A TYPE
- Options: Special temperature ranges, customized connections, lens and stem length

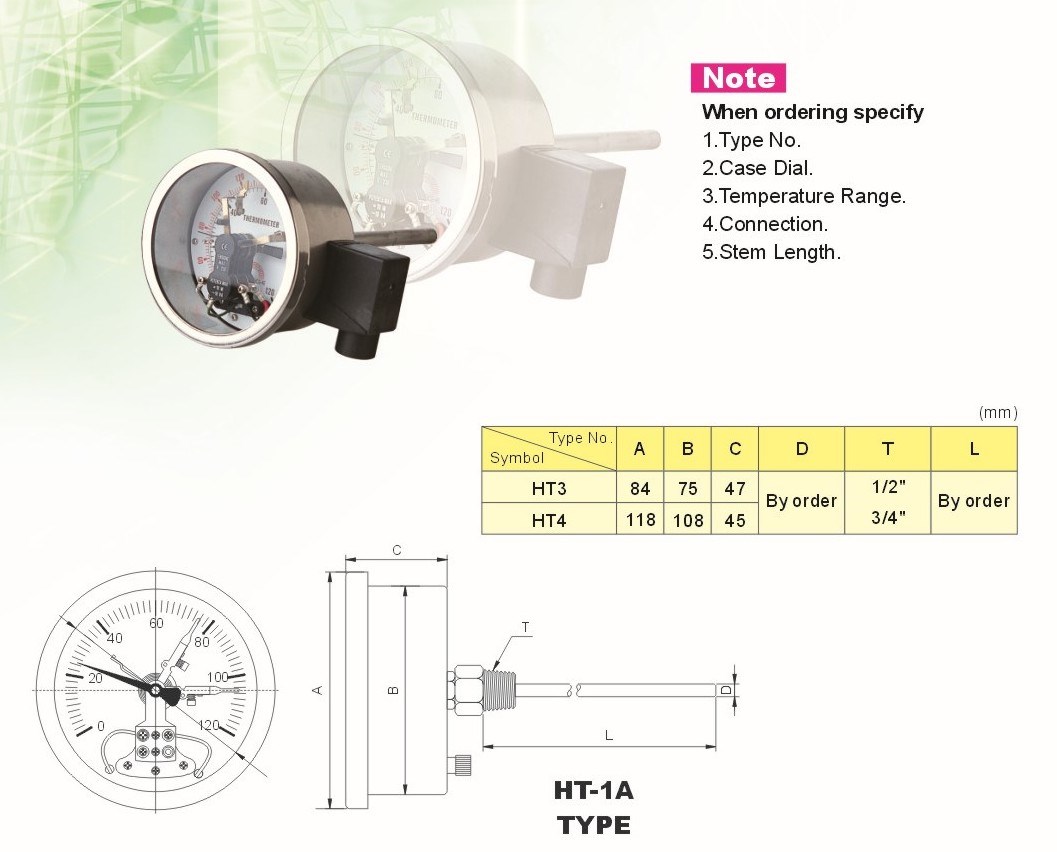

Model Dimensions
| Model No. | A | B | C | D | Connection (T) | Stem Length (L) |
|---|---|---|---|---|---|---|
| HT3 | 84 | 75 | 47 | By order | 1/2" | By order |
| HT4 | 118 | 108 | 45 | By order | 3/4" | By order |
HT-1A Type Liquid Expansion Thermometer
