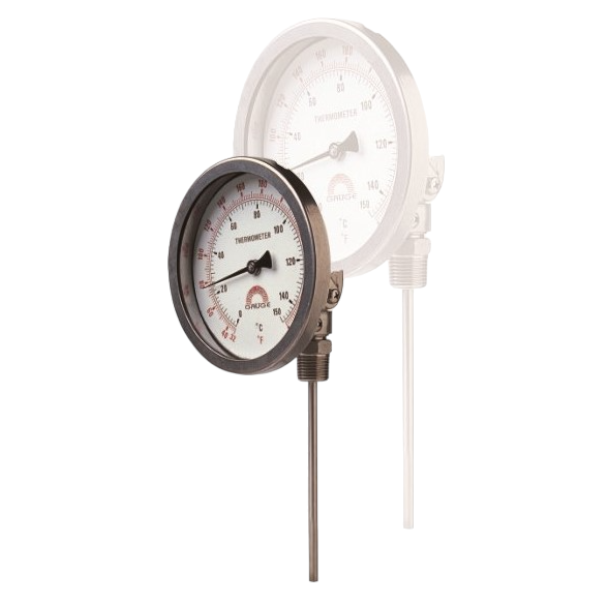

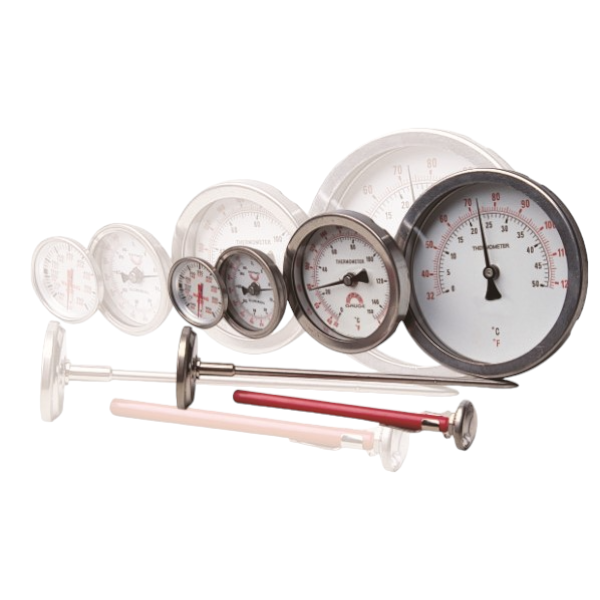

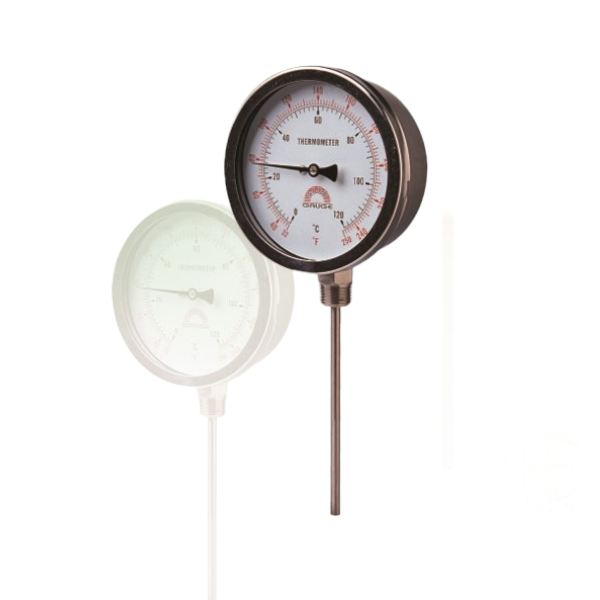

Bi-Metal Dial Thermometer｜BL TYPE Specifications & Structure
Technical Specifications
- Case Material: 304, 316 Stainless Steel
- Case Dial Sizes: 1.5", 2", 2.5", 3", 4", 5", 6"
- Stem Material: 304, 316 Stainless Steel
- Temperature Range: -50℃ ~ +600℃
- Window: Glass
- Connection: 1/4"PT, 3/8"PT, 1/2"PT, 3/4"PT, 1"PT (NPT, BSP)
- Stem Length: By order
- Stem Diameter: 6mm, 6.35mm, 8mm
- Accuracy: ±1% F.S.
- Type: BL TYPE
- Applications: Transformers, petrochemical plants, dryers, food processing, HVAC equipment, boilers, and other industrial uses
Model Dimensions
| Model No. | A | B | C | D | L (Insert Length) | T (Connection) |
|---|---|---|---|---|---|---|
| BL2 | 49 | 58 | 14 | 6 | By order | 1/4"PT |
| BL3 | 70 | 84 | 17 | 6.35 | By order | 3/8"PT |
| BL4 | 100 | 119 | 18 | 8 | By order | 1/2"PT |
| BL5 | 125 | 141 | 18 | 10 | By order | 3/4"PT |
| BL6 | 150 | 166 | 18 | 12 | By order | 1"PT |
Bi-Metal Dial Thermometer BL TYPE
